SIGRID_CTX_001-H - POV Personal SENAPRED - Subd. Reducción del Riesgo de Desastres

@startuml


!include <C4/C4_Container>
!include <C4/C4_Context>
SHOW_PERSON_OUTLINE()

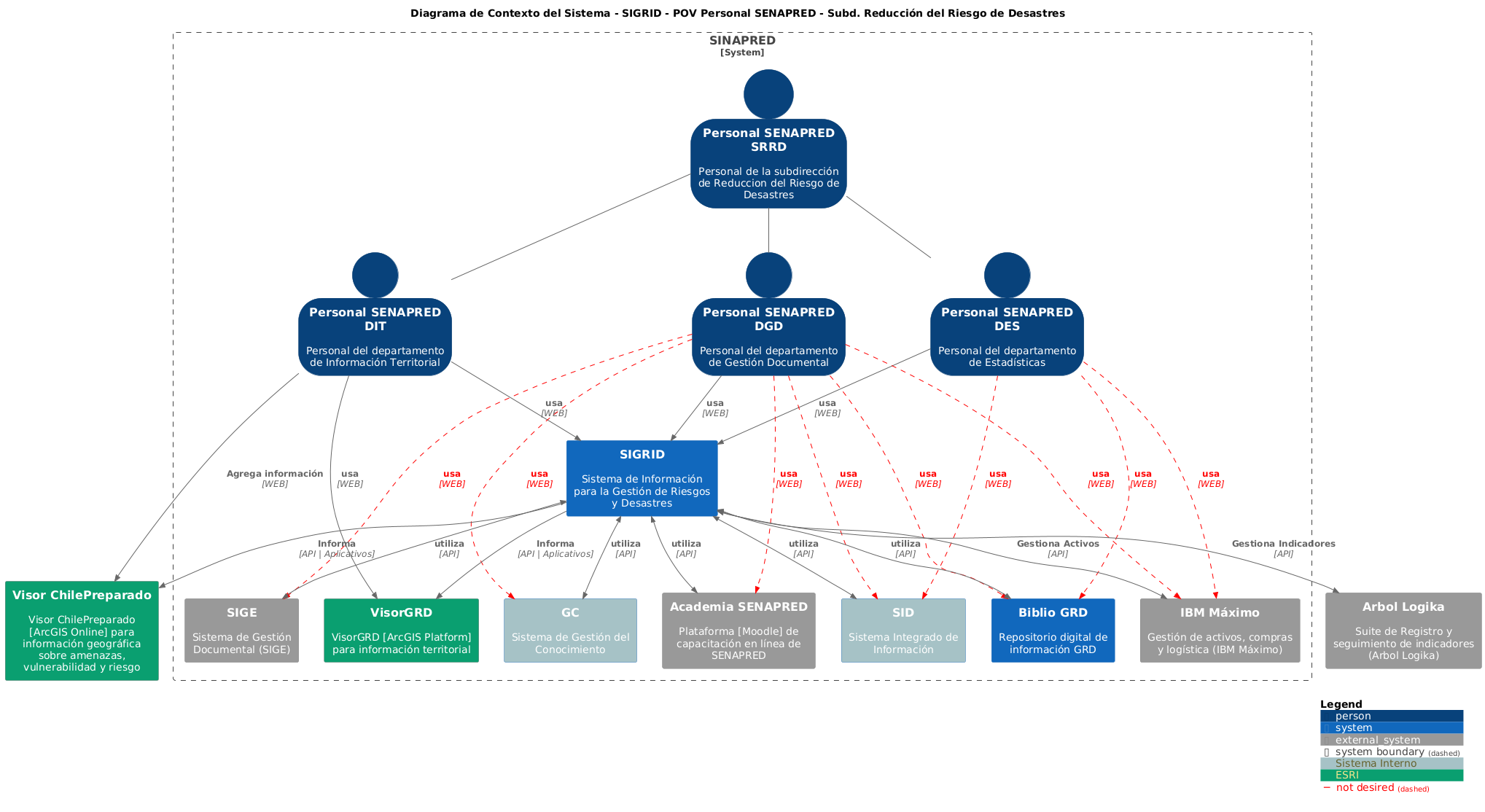

title Diagrama de Contexto del Sistema - SIGRID - POV Personal SENAPRED - Subd. Reducción del Riesgo de Desastres

AddElementTag("SINAPRED", $bgColor="#5869B1")
AddElementTag("cge", $legendText="Contraloría General de la República", $bgColor="#ffc77f", $fontColor="#000000")
AddElementTag("dipres", $legendText="Dirección de Presupuestos", $bgColor="#0c5c8f")
AddElementTag("mideso", $legendText="Ministerio de Desarrollo Social", $bgColor="#3adb56")
AddElementTag("interno", $legendText="Sistema Interno", $bgColor="#a6c2c6")
AddElementTag("esri", $legendText="ESRI", $bgColor="#0a9f70")

AddRelTag("not desired", $textColor="red", $lineColor="red", $lineStyle=DashedLine())

System_Boundary(sinapred, "SINAPRED") {
    Person(personSENAPREDrrd, "Personal SENAPRED SRRD", "Personal de la subdirección de Reduccion del Riesgo de Desastres", $link="../stakeholders.html#ITRENDCL-SIGRID-PRS-PERSONAL_SENAPRED_SRRD")
    Person(personSENAPREDgd, "Personal SENAPRED DGD", "Personal del departamento de Gestión Documental", $link="../stakeholders.html#ITRENDCL-SIGRID-PRS-PERSONAL_SENAPRED_DGD")
    Person(personSENAPREDit, "Personal SENAPRED DIT", "Personal del departamento de Información Territorial", $link="../stakeholders.html#ITRENDCL-SIGRID-PRS-PERSONAL_SENAPRED_DIT")
    Person(personSENAPREDes, "Personal SENAPRED DES", "Personal del departamento de Estadísticas", $link="../stakeholders.html#ITRENDCL-SIGRID-PRS-PERSONAL_SENAPRED_DES")

    System(sigrid, "SIGRID", "Sistema de Información para la Gestión de Riesgos y Desastres", $link="../systems.html#ITRENDCL-SIGRID-SYS-SIGRID")
    System_Ext(maximo, "IBM Máximo", "Gestión de activos, compras y logística (IBM Máximo)", $link="../systems.html#ITRENDCL-SIGRID-SYS-IBM_MAXIMO")
    System_Ext(sige, "SIGE", "Sistema de Gestión Documental (SIGE)", $link="../systems.html#ITRENDCL-SIGRID-SYS-SIGE")
    System(sid, "SID", "Sistema Integrado de Información", $link="../systems.html#ITRENDCL-SIGRID-SYS-SENAPRED-SID", $tags="interno")
    System_Ext(arcgisPlatform, "VisorGRD", "VisorGRD [ArcGIS Platform] para información territorial", $link="../systems.html#ITRENDCL-SIGRID-SYS-ARC_GIS_PLATFORM", $tags="esri")
    System(bibliogrd, "Biblio GRD", "Repositorio digital de información GRD", $link="../systems.html#ITRENDCL-SIGRID-SYS-SENAPRED-BIBLIO_GRD")
    System(gestcon, "GC", "Sistema de Gestión del Conocimiento", $link="../systems.html#ITRENDCL-SIGRID-SYS-SENAPRED-GC", $tags="interno")
    System_Ext(academia, "Academia SENAPRED", "Plataforma [Moodle] de capacitación en línea de SENAPRED", $link="../systems.html#ITRENDCL-SIGRID-SYS-SENAPRED-ACADEMIA", $tags="moodle")
}

System_Ext(arcgisOnline, "Visor ChilePreparado", "Visor ChilePreparado [ArcGIS Online] para información geográfica sobre amenazas, vulnerabilidad y riesgo", $link="../systems.html#ITRENDCL-SIGRID-SYS-ARC_GIS_ONLINE", $tags="esri")
System_Ext(arbolLogika, "Arbol Logika", "Suite de Registro y seguimiento de indicadores (Arbol Logika)", $link="../systems.html#ITRENDCL-SIGRID-SYS-ARBOL_LOGIKA")

personSENAPREDrrd -- personSENAPREDgd
personSENAPREDrrd -- personSENAPREDit
personSENAPREDrrd -- personSENAPREDes

Rel(personSENAPREDgd, sigrid, "usa", "WEB")
Rel(personSENAPREDit, sigrid, "usa", "WEB")
Rel(personSENAPREDes, sigrid, "usa", "WEB")
Rel(personSENAPREDgd, maximo, "usa", "WEB", $tags="not desired")
Rel(personSENAPREDes, maximo, "usa", "WEB", $tags="not desired")
Rel(personSENAPREDgd, sige, "usa", "WEB", $tags="not desired")
Rel(personSENAPREDgd, sid, "usa", "WEB", $tags="not desired")
Rel(personSENAPREDgd, bibliogrd, "usa", "WEB", $tags="not desired")
Rel(personSENAPREDes, bibliogrd, "usa", "WEB", $tags="not desired")
Rel(personSENAPREDgd, academia, "usa", "WEB", $tags="not desired")
Rel(personSENAPREDes, sid, "usa", "WEB", $tags="not desired")
Rel(personSENAPREDit, arcgisPlatform, "usa", "WEB")
Rel(personSENAPREDgd, gestcon, "usa", "WEB", $tags="not desired")
Rel(personSENAPREDit, arcgisOnline, "Agrega información", "WEB")

BiRel(sigrid, sige, "utiliza", "API")
BiRel(sigrid, arbolLogika, "Gestiona Indicadores", "API")
BiRel(sigrid, maximo, "Gestiona Activos", "API")
Rel(sigrid, arcgisPlatform, "Informa", "API | Aplicativos")
Rel(sigrid, arcgisOnline, "Informa", "API | Aplicativos")
BiRel(sigrid, sid, "utiliza", "API")
BiRel(sigrid, gestcon, "utiliza", "API")
BiRel(sigrid, bibliogrd, "utiliza", "API")
BiRel(sigrid, academia, "utiliza", "API")

SHOW_LEGEND()
@enduml
